the basic versionInline Filter ILF
The separated solids collect in the filter tube and are discharged by hand. If the filter insert clogs, the filter can be backflushed.
Inline Filters ILF and ILF-V
Inline filters for hygienic and sterile process lines: a tubular filter surface separates the solids from the liquid. On the ILF they are discharged by hand, on the
8 / 40bar nominal pressure, depending on closure
DN25…100nominal size, DIN, ISO and OD acc. DIN11866
160°C, CIP and SIP capable, higher on request
Ra < 0.6µm, product contact electropolished
Overview
Separating solids. In the line.
The filter sits directly in the pipeline and allows a high flow rate with low pressure loss in continuous operation. The simple, robust design makes filter changes, inspection and maintenance easy and safe.
- For gases and liquids
- Sterile design, static seals only
- Filter insert as perforated tube, slot tube or mesh
- Can be backflushed, on the
ILF-V inline through the sterile valve - CIP and SIP capable up to 160 °C
- Connections
bio-plus® sterile union, DIN11864, DIN32676, EN1092 - Product-contact surfaces electropolished, Ra < 0.6 µm
- Gaskets FDA conform, USP Class VI, TSE-free
- Options: feedback unit M12, heating or cooling jacket
Versions
Emptied by hand or flushed inline.

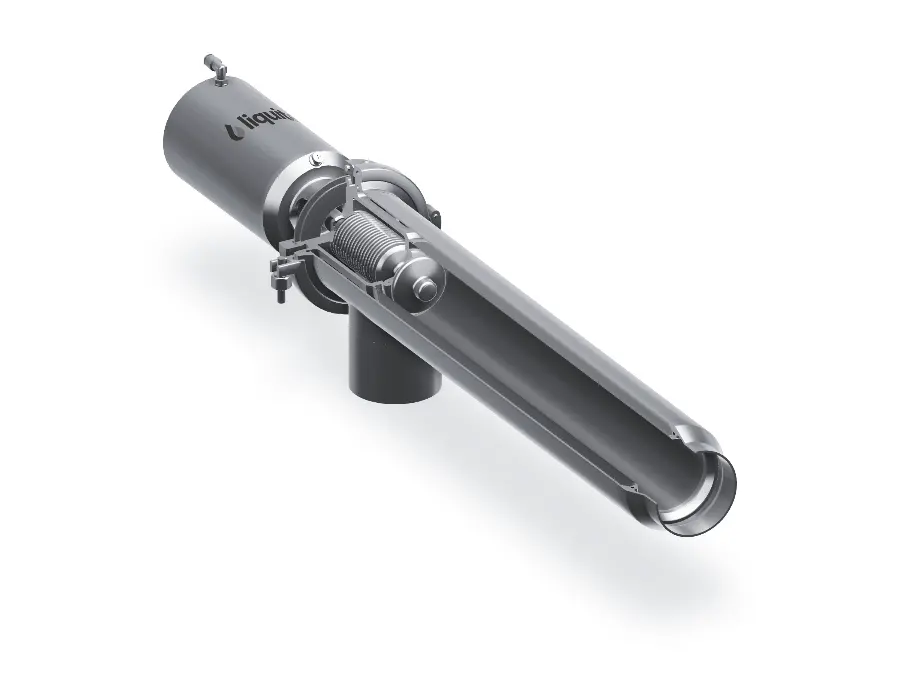

with attached sterile valveInline Filter with Valve ILF-V
The solids are discharged automatically through the sterile valve. If the filter insert clogs, the filter is backflushed inline. The housing stays closed.
to suit medium and solidsFilter insert
Perforated tube or slot tube with perforation or slot in millimetres, mesh with mesh width in micrometres. Special designs on request.
Technical data
Materials, pressures, temperatures.
- Nominal sizes
- DN25 to DN100, pipe standards DIN, ISO and OD acc. DIN11866
- Nominal pressure
- 8 bar with screw union or clamp closure, 40 bar with flange closure
- Product-contact materials
- Housing 1.4435 or 1.4404 (both 316L), mesh 1.4404; special materials such as 2.4602, titanium or 1.4539
- Gaskets
- EPDM, VMQ (silicone), FKM, FEP-silicone, FFKM
- Temperature by gasket
- EPDM −40 to +150 °C, briefly 160 °C; VMQ −50 to +200 °C, briefly 230 °C; FFKM −15 to +260 °C
- Inside surface
- Ra 0.8, 0.6 or 0.4 µm, electropolished or blank
- Connections
- Weld end DIN11866,
bio-plus® sterile union s/f/c,DIN11864-1 /2/3, clamp DIN32676, flange EN1092, special connections - Pressure loss
- Depending on mesh width and contamination; pressure loss diagrams on request
- Options
- Feedback unit M12 with initiator and 10 m cable; heating or cooling jacket
- Certificates
- Inspection certificate 3.1 for product-contact parts, certification of surface roughness and delta ferrite content, FDA compliance of product-contact gaskets
- Traceability
- Via the order number
Ordering key
Eleven positions, one version.
Example: ILF D 65 S S 16 0 A L-03 8 INI — inline filter, DIN, DN65, screw union, weld end, 1.4404, EPDM, Ra 0.8 µm electropolished, 3 mm perforation, 8 bar, with feedback unit.
Device and size
- Article: ILF or
ILF-V - Pipe standard: DIN, ISO or OD
- Nominal size DN25 to DN100
- Nominal pressure 8 or 40 bar
Connection and material
- Housing closure: screw union, clamp or flange
- Product connection: weld end,
bio-plus® , DIN11864, DIN32676, EN1092 - Material 1.4404 or 1.4435 (both 316L)
- Gasket EPDM, VMQ, FKM, FEP-silicone, FFKM
Equipment
- Inside surface Ra 0.8, 0.6 or 0.4 µm
- Electropolished or blank
- Filter insert: perforation, slot or mesh
- Feedback unit M12
- Heating or cooling jacket
Contact
Enquiry
Tell us the medium, nominal size, connection, material, gasket and the required perforation, slot width or mesh width of the filter insert. We will propose the right version.
Prefer to write directly?
